VIBE ANALYZER

vibration analyzer

Turn your mobile device into a professional vibration analyzer.

Detect bearing defects, unbalance, or mechanical looseness before machine failure occurs. Precise measurement, automated evaluation, and reporting—all in a single app.

I want to try it!

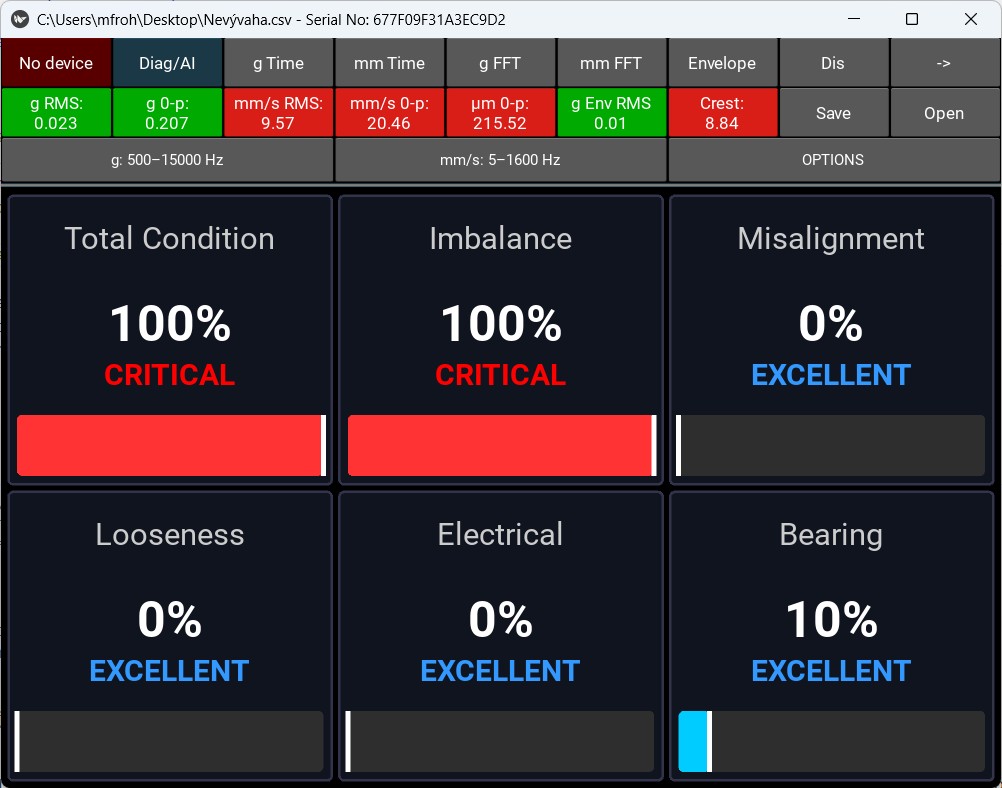

Results everyone can understand. Instantly.

Forget about interpreting complicated charts. The app performs the analysis and presents the output as a simple traffic light indicator:

🟢 Healthy – Safe to operate.

🟠 Warning – Schedule maintenance.

🔴 DANGER – Risk of failure, shut down the machine.

What we detect: Unbalance • Misalignment • Mechanical Looseness • Bearing Defects

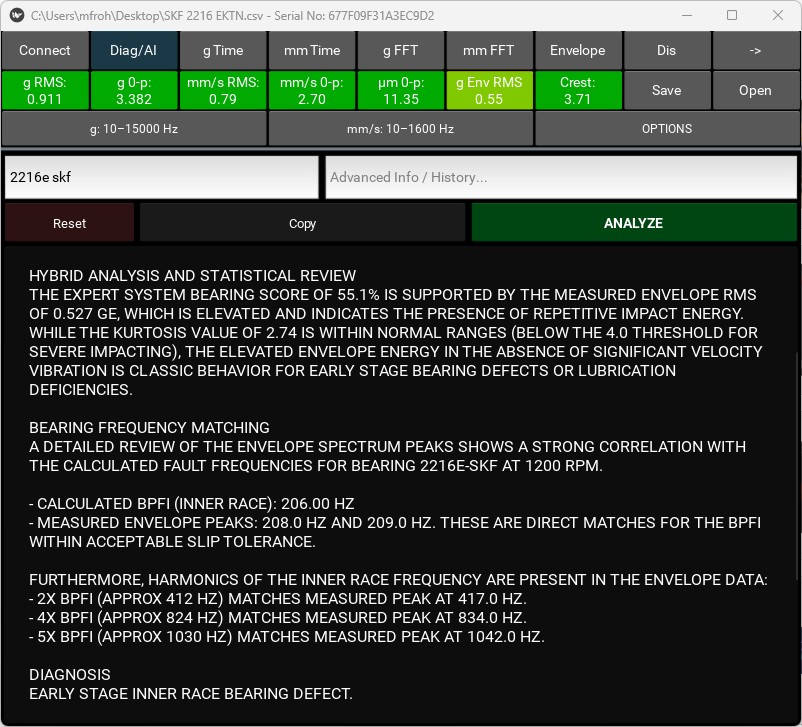

A bearing expert in your pocket.

Database of 20,000+ bearing types. Just enter the part number and measure.

  • We utilize advanced envelope analysis.

  • We detect early-stage faults that remain invisible in standard vibration spectra.

  • Get clear information on bearing condition within seconds.

ISO-compliant measurements. Automatically.

No need to look up tables or standards. ISO 20816 standards are fully integrated into the app.

  1. Select your machine type.
  2. The system automatically configures the alarm limits.
  3. Decide on facts, not feelings.

You aren’t alone. You have our full expert support.



Encountered „mysterious“ vibrations? Send your measured data to our certified VibeDynamics diagnosticians with a single click.

We will review the data, confirm the fault type, and recommend a solution. We operate as your external diagnostic team.

Catch potential failures before production stops.



Thanks to the „Route“ module and trend charts, you can monitor deteriorating machine conditions over time.

  • 📈 Track the trend: See vibration increases weeks ahead.

  • 💰 Save thousands in costs: Planned maintenance is far cheaper than dealing with a catastrophic motor failure.

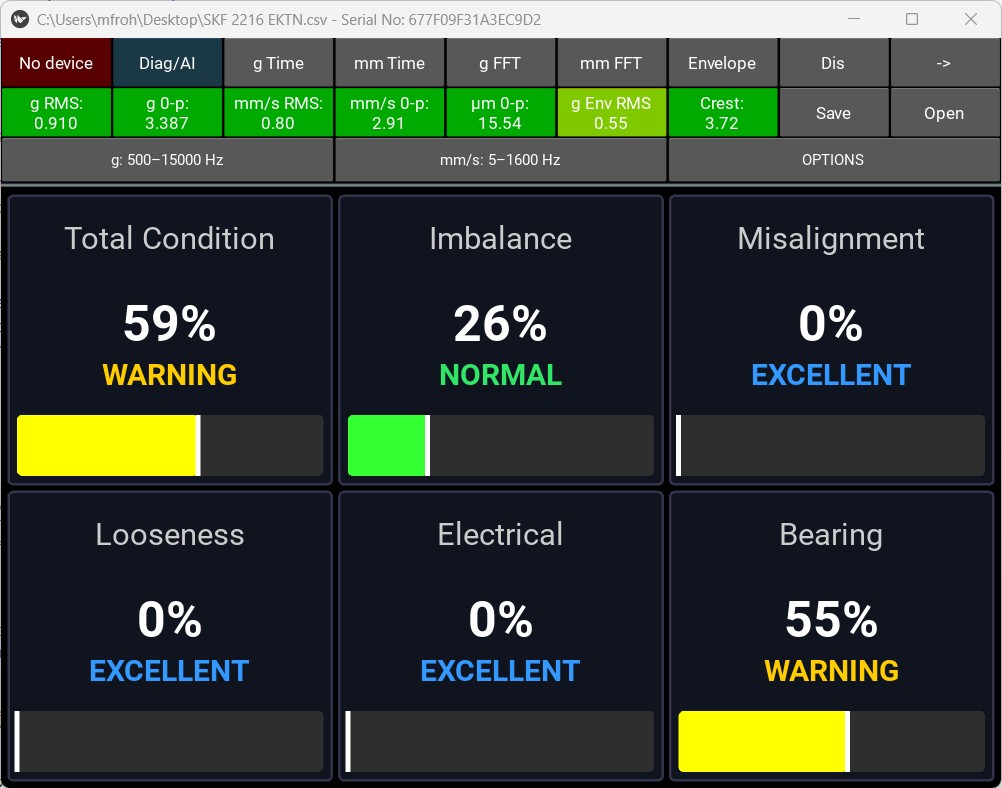

Automatic Fault Detection



  • Overall machine condition
  • Unbalance
  • Misalignment
  • Mechanical looseness
  • Electrical fault
  • Bearing condition

Real-time vibration values



  • Vibration velocity (mm/s)
  • Vibration acceleration in gRMS and Peak
  • Enveloped g
  • Displacement
  • Crest factor

Time waveform and FFT spectra



  • Velocity, acceleration, and displacement time waveforms
  • Velocity and acceleration FFT spectra
  • Envelope FFT spectrum – bearing fault detection

Route-based measurement



  • Get a clear vibration trend curve.

  • The chart reveals the problem before you can hear it.

  • Bearing replacement is incomparably cheaper than a machine breakdown.

Measurement



  • Frequency range 1–15,000 Hz
  • Measurement duration 1–8 s
  • FFT spectrum resolution 1 Hz, 0.5 Hz, 0.25 Hz, 0.125 Hz

Natural frequency measurement



  • Natural frequency measurement – Bump test
  • Identify the cause of resonance or structural cracks

Always ready – no charging required



  • USB-C power: The sensor draws power directly from your mobile or tablet.

  • No batteries: You never have to deal with a dead meter in the middle of a shift.

  • Plug & Play: Just connect the cable and start measuring immediately.

Durable body and wide compatibility



  • Aluminum housing: Robust industrial construction weighing only 120 g.
  • Multi-platform: The app runs on Android and Windows.
  • Compact dimensions: Fits into any pocket (25 × 25 × 110 mm).

Measurement accuracy



  • 24-bit converter: Captures even the finest signal details with minimal noise.

  • MEMS technology: Top-tier low-noise accelerometer with high sensitivity.

  • Sampling: Up to 32,000 samples per second for detailed analysis.

Save on diagnostics by external companies



A standard diagnostic visit by an external company costs quite a lot of money.

This means you can save huge amount of money with our analyzer.

Save significant amounts on electricity



A machine with high vibration has higher power consumption.

By balancing the rotor, you can save significant amounts on energy bills alone.

Monitor vibrations and reduce your operating costs.

Czech product with full support



No cheap resale without a warranty.

We develop and manufacture the VIBE ANALYZER in the Czech Republic.

This gives you the certainty of immediate service and technical support.

Don’t have the capacity to measure yourself? We’ll do it for you.

In addition to developing the analyzer, we provide complete turnkey service for rotating machinery

🛠 Vibration diagnostics and balancing (static and dynamic).

📐 Laser alignment of couplings and shafts.

⚙️ Bearing replacement and machine overhauls.

📋 Regular monitoring (Maintenance outsourcing).

Are you interested in the VIBE ANALYZER?

Write to us. We would be happy to give you a demo or send you a price quote.
